| TELASKA A08(STANDARD SPECS) | ||
| Booth Cabin | Panel | High gloss white rock wool panel, thickness 75mm with edges. |
| Front Door/Safety Door | Four offs sheetmetal front door and 2 pcs of safety door | |
| Lighting System |
Top Lighting | 16 sets of LED light,each set 4*18W |
| Middle Lighting | 16 sets of LED Fight.each set 4*18W | |
| Filter System | Ceiling Filter | 12 sets of grill type net supporting installation |

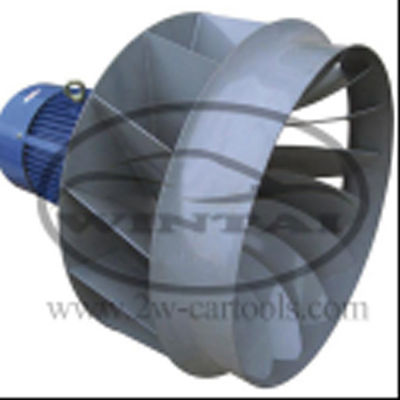

| Intake&Exhaust System | Intake Fan | 2unit of European tyle fan with capacity of 30000m*/h(two sets of intake fans) |
| Exhaust Fan | 2 unit of European tyle fan with capacity of 30000m/h(two sets of intake fans) | |
| VCD Damper | 2 | |
| Load Air Velocity | 0.25-0.35 m/s | |
| Exhaust Duct | 4 meters of straight duct and 1 piece of 90"bend and1 piece of 45*bend.(2 sets) | |
| Heating System | Heating Method | RIELLO brand RG5S diesel burner, cycle heating(2 sets) |
| Max. Working Temperature | 80℃ | |
| Constant Temp.Spray Painting | Constant Temperature Operation | |
| Control System | Control Panel | Made by quality components with the functions of overload,overheat and phase lack protection. |
| Functions | Spray, Bake, Lighting and Emergency Stop | |
